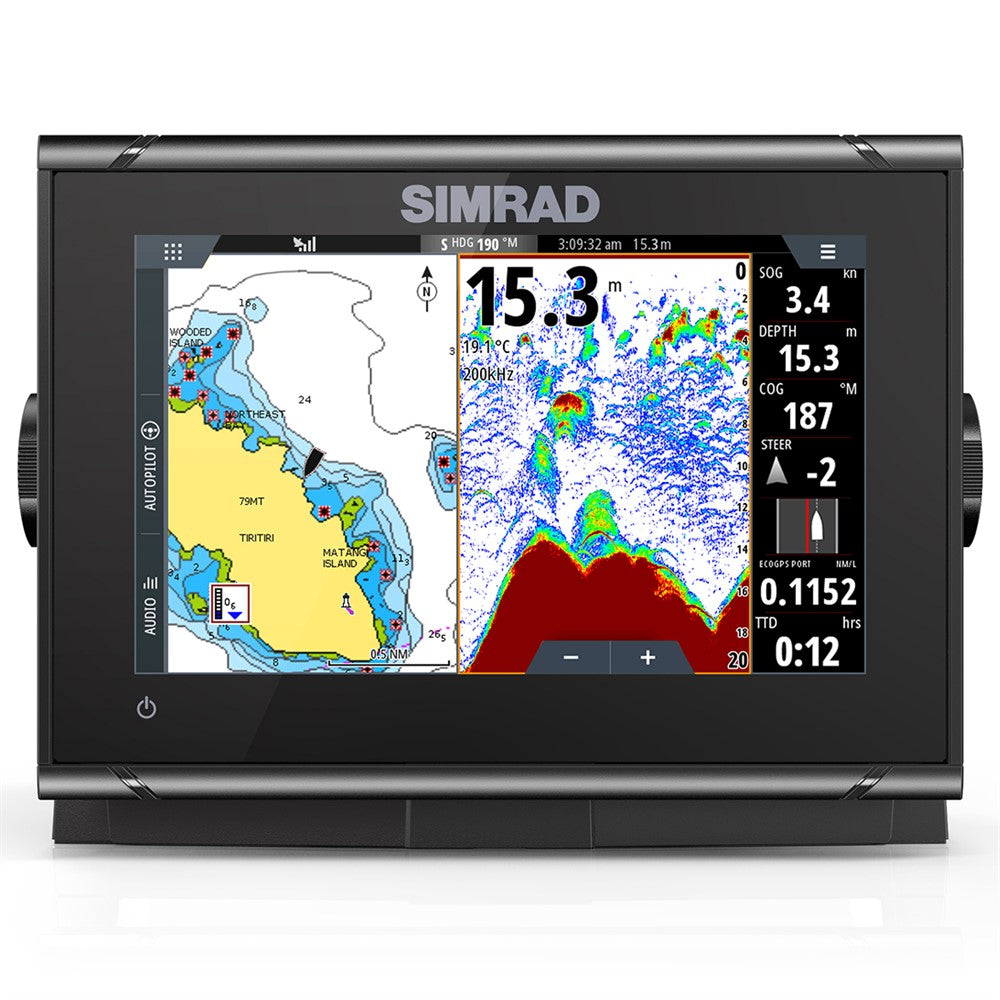

SIMRAD GO7 XSR

Cartography included: TBD

Languages: Engelska, Svenska, Finska, Danska, Norska mfl

Cartography supported: Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)

Radar (inc. compatibility): Halo, Broadband, HD Radars

External Storage: 2 Micro SD slots, max. 32GB each. >32 GB format to NTFS

Weather: SiriusXM via WM-3 (USA only), GRIB

Internal Storage: 90MB

Sonar (inc. compatibility): Integrated CHIRP / DownScan / ForwardScan. Single 9 Pin Xsonic Connector

GPS: Internal, 10Hz, WASS, MSAS, EGNOS

AIS: Receive AIS data over NMEA 2000 only

Warranty Period: 2 Years

Interface: Touch screen, OP40 or OP50 controller via NEA 2000

Multimedia: via SonicHub2, Fusion Link, *Sirius, **JL Audio. *USA only, **AUST. & NZ only)

Autopilot: Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commission

Digital Switching: BEP C-Zone

Networking Connectors:

Ethernet: 1 x 5 pin yellow connector x 1 Mbit. Radar and Sirius (USA only) connectivity only (unless unlocked)

NMEA 2000: 1 x NMEA 2000 Micro-C port, 1 LEN

NMEA 0183: None

PC Connectivity: None

NMEA 0183 Sentences supported: Exports NMEA0183 over WiFi

Video: None

WiFi: Internal

Bluetooth: Internal

Technical/Environmental:

Dimensions (W x H x D): 197 mm x 141 mm x 82.7 mm (7.56 x 5.55" x 3.26") (no bracket)"

Mounting Type: Bracket or Panel

Weight: 1.320 kg (2.91lb)

Type Approval: N/A

Compliance: CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1

Storage Temperature Range: -20°C to +60°C (4°F to 140°F)"

Waterproof rating: IPX 6 and 7

Operating Temperature Range: -15°C to +55°C (5° F to 131° F)"

Shock and Vibration: CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1

GPS Navigation

Time to First Fix: Cold start less than 90 seconds exposed to open sky, Satellite Reacquisition 5 sec

Correction: WASS, MSAS, EGNOS, GLONASS

Position Accuracy: Horizontal Accuracy 3 m (9.8 ft.)

GPS Receiver Channels: 32 Channels

Update rate: 10 Hz

Power

Recommended Fuse Rating: 3A

Power Consumption, max.: 20 W

Power Consumption, typical: 12 W

Supply Voltage: 10 - 17 V DC

Display

Resolution: 800x480

Screen Brightness:1200 nits

Screen Size and Type: 7-inch screen

Backlight Color: White

Viewing Angles: 80° top/bottom, 80° left/right

Se installationsvideo här:
